Latest Build: v0.1b (beta), September 1, 2019
MSXLaunch is a menu system to catalog and launch your MSX ROMs, for the
distinguished APMSX connoisseur. Some highlights include:
- Uses only 6502 opcodes and fits in 64KB of RAM (should work on 64K
Apple II Plus)
- User-editable ROM directory file
- Selectable slot, Z80 speed, and more
- Supports MegaROMs with custom mapper settings
- Made with an Apple IIe and Merlin 8 Pro
- Nobody I know has ever gotten APMSX working on an Apple IIgs
- For best compatibility, remove FastChip IIe completely, don't just disable.
It will work with a disabled FastChip IIe, but some ROMs don't work, and
often you'll have to reboot completely to get the next one to work.
Nobody I know has ever gotten APMSX working with an enabled FastChip IIe.
Just copy the MSXLAUNCH SYS file as well as the MSXDIR text file into the
directory containing your MSX ROMs. Next, make sure your MSXDIR file is
The format of the MSXDIR text file is as follows:
First there is a configuration record consisting of:
The % is a header specifying the configuration record.
The '1' is the slot number of your APMSX card. Change this if it isn't 1 or
you'll have to use the 'S' key to set your APMSX slot everytime you use
The '0' is currently reserved.
The ^ is the end-of-record delimiter.
Next, there are up to 255 ROM records (no, we don't do 16-bit math yet)
Readable text description
Notice that most records will not have additional 32KB mega-ROM parts, so
those entries are optional.
A note about mega-ROMs: MSXLauncher will assume mapper bit setting $09 for
mega-ROMs, unless there is an extra line containing a + before the end-of-
record delimiter, in which case it will assume $11. This helps to set the
proper mapper bits for compatibility.
These are examples of valid records:
[ Example 1: 8-part Mega-ROM with $09 bit setting ]
Gradius 3 (Nemesis 3) (1988)
[ Example 2: 1-part ROM ]
[ Example 3: 4-part Mega-ROM with $11 bit setting ]
Aliens. Alien 2 (1987)
You probably already have most of the ROMs in the provided sample MSXDIR file.
Note that if you make a mistake in the MSXDIR file, MSXLaunch will likely
crash. Its parser isn't particularly forgiving, and it can't really be.
MSXLaunch looks at $280 to find the pathname that was used to invoke it. It
uses this path to make sure the ProDOS prefix is set so it can find MSXDIR.
If it can't load MSXDIR, it will show an error message and quit and we'll be

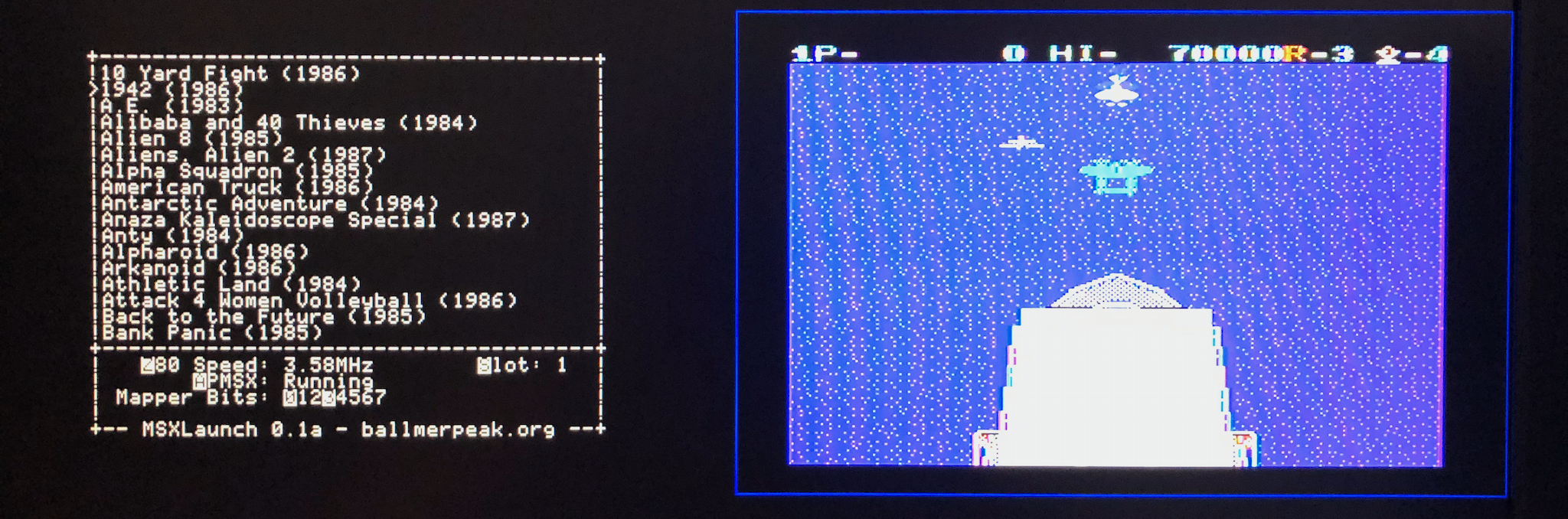

If everything worked, you'll see the menu.
If the 'Slot' shown at lower-right isn't correct, you can tap the 'S' key to
change it until it is correct (although you'll probably just want to change
line 2 of the MSXDIR file).
The up/down arrow keys (ctrl-J/ctrl-K on Apple II+) will select the ROM to
launch. You can hold down the Open Apple key while doing this to navigate a
full page at a time.
The Return key will launch the selected ROM.
While a ROM is running, the Z key will change the speed of the Z80 CPU. It
stops the CPU, changes the speed setting, then un-stops it. This seems to be
the most reliable way to do on-the-fly speed changes.
Note that after starting a ROM, the most reliable way to start another is to
hold Ctrl-Reset, which resets both the APMSX card and MSXLauncher. You can
just use the arrow keys and Return to start another ROM without doing Ctrl-
Reset, but it's less likely to work because of the unknown state of the APMSX
Notice that I build up a routine at $300 to do LDA #00 ; STA $Cx00 ; RTS.
Why didn't I just do that inside the main program at $9xxx? Because it doesn't
work if executed from there! Nobody knows why this is, but likely an artifact
of the $1000-$9000 'windowing' from APMSX.
If you've developed a patch for MSXLaunch, it will be reviewed and merged
promptly if sent to firstname.lastname@example.org
